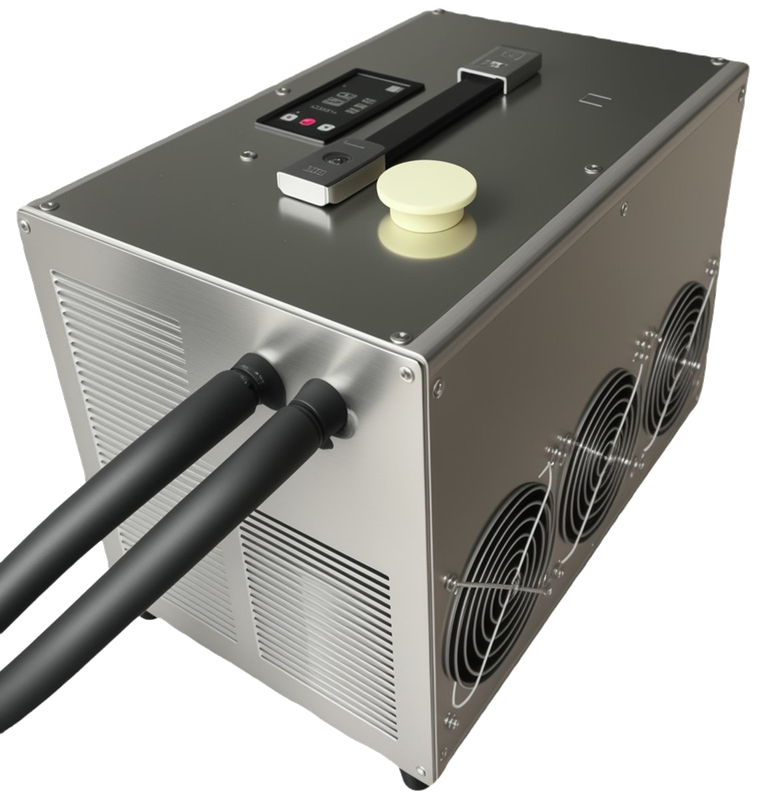

迷你低温循环水浴锅
PX-TC-RCB
半导体制冷 · 零振动 · 桌面紧凑
产品介绍
一款紧凑型低温循环装置，采用半导体制冷技术，可为各类原位池或小型反应器提供稳定的低温冷却液循环。其控温精准，尺寸小巧，可直接放置于光谱仪样品舱旁，通过软管连接原位池的控温夹套，实现低温区实验条件的精准控制。特别适合与液相全反射红外原位池（PX-RC-ATR-A2）配合使用。
产品优点
- 半导体制冷：无压缩机，零振动，不影响光谱测量稳定性
- 体积小巧：桌面放置，不占用额外实验室空间
- 控温精准：温度波动±0.1℃，满足精密实验需求
产品参数
| 制冷方式 | 三核半导体制冷，432W |
| 控温范围 | 0~35℃，精度：±0.1℃ |
| 温度波动 | ±0.1℃ |
| 水箱容积 | 500mL |
| 产品尺寸 | L300mm×W195mm×H230mm |
Mini Low-Temperature Recirculating Water Bath
PX-TC-RCB
PRODUCT INTRO
A compact low-temperature recirculating chiller based on semiconductor (Peltier) cooling. It delivers stable low-temperature coolant circulation to in-situ cells and small reactors, with precise temperature control in a tabletop-sized body that can sit right next to the spectrometer sample compartment, connecting to the cell's thermostatic jacket via hose. It is particularly well suited to the PX-RC-ATR-A2 liquid-phase ATR in-situ cell.
PRODUCT ADVANTAGES
- Semiconductor cooling — no compressor, zero vibration, will not disturb spectroscopic measurement stability
- Compact footprint — sits on the bench without taking extra lab space
- Precise temperature control — ±0.1 °C fluctuation meets precision experimental needs
PRODUCT SPECIFICATIONS
| Parameter | Specification |
| Cooling Method | Tri-core semiconductor cooling, 432 W |
| Temperature Control Range | 0–35 °C; accuracy ±0.1 °C |
| Temperature Stability | ±0.1 °C |
| Tank Volume | 500 mL |
| Dimensions | L300 mm × W195 mm × H230 mm |
