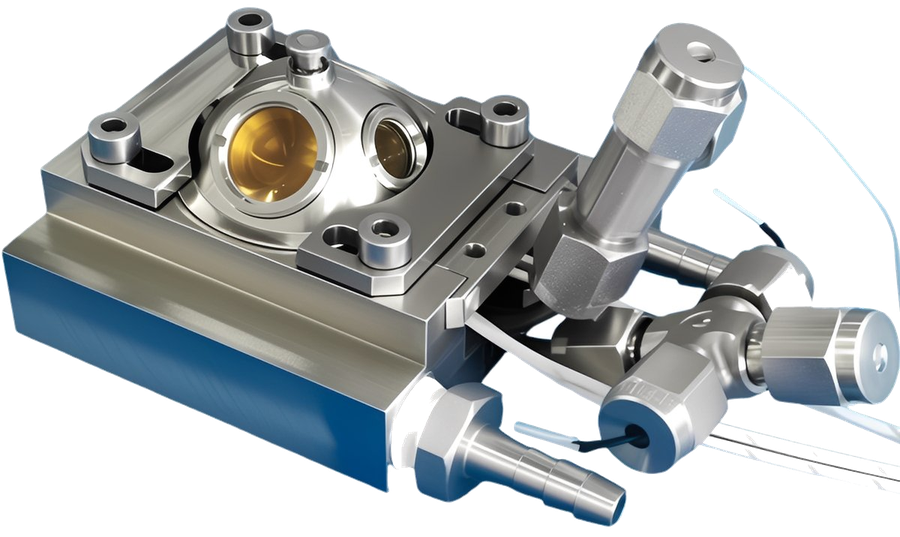

热电耦合原位池
PX-RC-DRS-TEC
弹性恒焦 · 一体化馈通 · 光谱零漂移
产品介绍
适配各主流品牌光谱仪，专为电场环境的多相催化原位表征而设计。创新性采用弹性恒焦结构与悬空馈通设计，有效抑制变温过程中的光路跑焦，并解决高温区域多路信号引入的密封难题。适用于气固相体系下的热电耦合原位光谱及电学表征，保证了数据的准确性与可靠性。
产品优点
- 弹性恒焦设计物理锁定样品高度，自动补偿热膨胀，显著降低光谱信号漂移
- 馈通结构实现气路与电学引线的一体化引入，避免高温区密封隐患
- 支持穿透式与绕行式双模式布线，弹性推力确保电极与样品紧密接触
- 进气随加热台预热，避免冷气直冲催化剂
- 热电偶直插床层测温，更贴近真实反应温度
产品参数
| 温度范围 | 常温~850℃，精度：±0.2℃ |
| 压力范围 | 真空~4.0MPa * |
| 产品材质 | 加热台：310S不锈钢；外壳：316不锈钢（内置循环水通道） |
| 窗片材质 | 红外光谱：石英+硒化锌；紫外-可见、拉曼光谱：石英 |
| 测温方式 | K型热电偶，末端直接置于床层内部测温 |
| 加热方式 | 双加热棒对称排列，单根20V/300W（合计600W） |
备注
* 最高温度与最高压力不可同时达到，高温时须相应降压。
Thermoelectric Coupling In-Situ Cell
PX-RC-DRS-TEC
PRODUCT INTRO
Compatible with mainstream spectrometers, the PX-RC-DRS-TEC is engineered for in-situ characterization of multiphase catalysis under applied electric fields. Its elastic constant-focus architecture and suspended feedthrough design eliminate focal drift during temperature variation and solve the sealing challenges of routing multiple signal leads through high-temperature zones. It is suited to thermo-electric coupled in-situ spectroscopy and electrical characterization of gas-solid systems, ensuring accurate and reliable data.
PRODUCT ADVANTAGES
- Elastic constant-focus design physically locks sample height and auto-compensates thermal expansion, delivering zero drift in the spectral signal
- Feedthrough structure integrates gas and electrical lead introduction, eliminating sealing risks in high-temperature zones
- Supports both pass-through and bypass wiring modes; elastic preload ensures firm electrode-sample contact
- Inlet gas is preheated by the integrated heating stage, preventing cold gas from directly contacting the catalyst
- Thermocouple inserted directly into the catalyst bed, giving readings closer to the true reaction temperature
PRODUCT SPECIFICATIONS
| Temperature Range | Ambient–850 °C; accuracy ±0.2 °C |
| Pressure Range | Vacuum–4.0 MPa * |
| Body Material | Heating stage: 310S stainless steel; housing: 316 stainless steel (built-in water-cooling channel) |
| Window Material | IR: Quartz + ZnSe; UV-Vis / Raman: Quartz |
| Temperature Sensing | K-type thermocouple, tip placed directly inside the catalyst bed |
| Heating Method | Twin heating rods in symmetric arrangement, 20 V/300 W per rod (600 W total) |
NOTE
* Maximum temperature and maximum pressure cannot be reached simultaneously; reduce the working pressure accordingly at elevated temperature.
