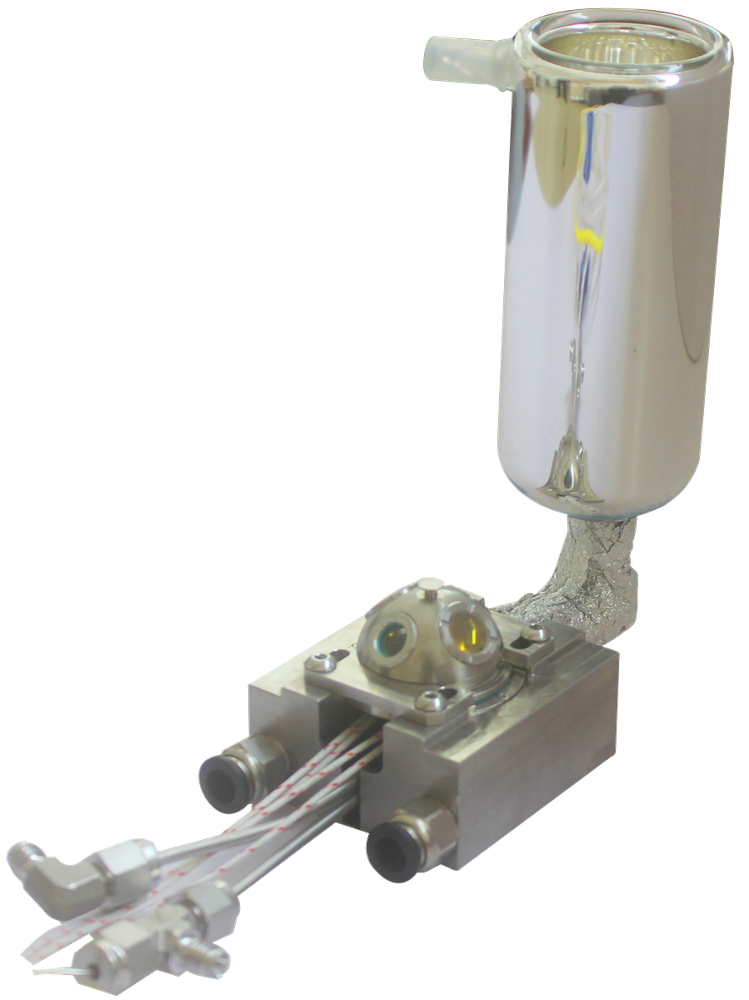

高低温漫反射原位池
PX-RC-DRS-A2
深冷高温 · 液氮操作便捷 · 程序升温
产品介绍
适配各主流品牌傅里叶变换红外光谱仪和紫外-可见吸收光谱仪。配备拉曼穹顶，还可用于拉曼光谱原位表征。研究对象为气固相体系。能够满足从真空到高压，从低温（-120°C）到高温（500°C）的各种实验条件。为确保低温区实验的顺利进行，本产品附送便携式热风枪，可有效避免窗片表面结霜或结露，保证红外信号的稳定采集。
产品优点
- 设备小巧，可以兼容各型号光谱仪
- 液氮加注操作方便
- 可在低温段进行程序升温操作
产品参数
| 温度范围 | -120~500℃，精度：±0.2℃ |
| 压力范围 | 真空~4.0MPa |
| 产品材质 | 316不锈钢 |
| 窗片材质 | 红外光谱：石英+硒化锌；紫外-可见、拉曼光谱：石英 |
| 测温方式 | K型热电偶，末端直接置于床层内部测温 |
| 加热方式 | 双加热棒对称排列，24V/150W |
Wide-Temperature Diffuse Reflectance In-Situ Cell
PX-RC-DRS-A2
PRODUCT INTRO
Compatible with mainstream FTIR and UV-Vis spectrometers and equipped with a Raman dome for in-situ Raman characterization, the PX-RC-DRS-A2 targets gas-solid systems across vacuum-to-high-pressure and low-temperature (-120 °C) to high-temperature (500 °C) conditions. A portable heat gun is included to prevent window fogging or condensation during low-temperature measurements, guaranteeing stable IR signal acquisition.
PRODUCT ADVANTAGES
- Compact footprint — compatible with spectrometers of various brands and models
- Convenient liquid-nitrogen filling operation
- Supports programmed heating in the low-temperature regime
PRODUCT SPECIFICATIONS
| Parameter | Specification |
| Temperature Range | -120–500 °C; accuracy ±0.2 °C |
| Pressure Range | Vacuum–4.0 MPa |
| Body Material | 316 stainless steel |
| Window Material | IR: Quartz + ZnSe; UV-Vis / Raman: Quartz |
| Temperature Sensing | K-type thermocouple, tip placed directly inside the catalyst bed |
| Heating Method | Twin heating rods in symmetric arrangement, 24 V/150 W |
