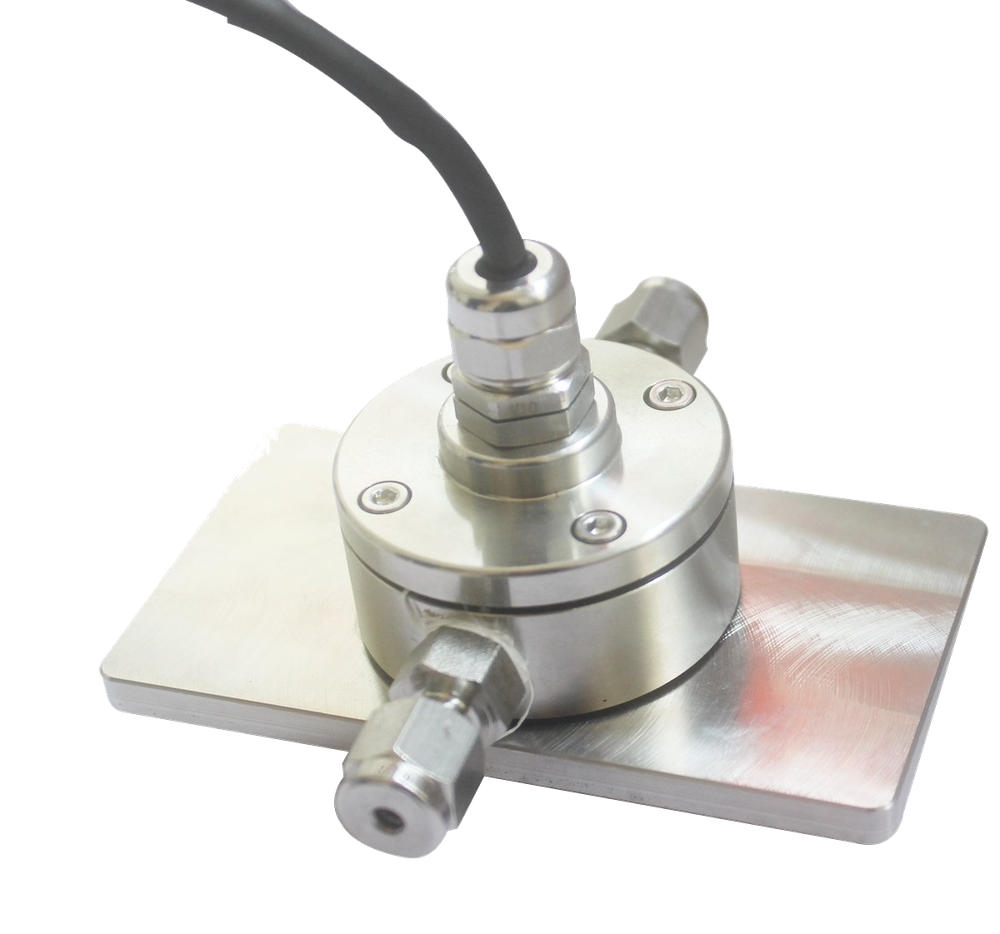

多相全反射红外原位池
PX-RC-ATR-A1
多相体系 · 3 MPa高压 · 流动测量
产品介绍
适配各主流品牌傅里叶变换红外光谱仪，与OPRex-ATR全反射附件联用。研究对象涵盖液相、液固相和气固相体系，能够满足从常压到高压（3.0 MPa）、常温到中温（250℃）的各种实验条件。池体内部设有进出液/气通道，支持流动态或静态测量，可在线监测反应液组成变化或气体吸附过程。
产品优点
- 多相体系兼容：液相、液固相、气固相均可测量
- 高压能力：耐压3.0 MPa，满足加压反应条件
- 流动测量：内置进出液/气通道，支持在线流动分析
产品参数
| 温度范围 | 常温~250℃，精度：±0.2℃ |
| 压力范围 | 真空~3.0MPa |
| 窗片材质 | 硅、氟化钙等 |
| 测温方式 | K型热电偶 |
| 加热方式 | 加热棒，24V/75W |
Multi-phase Attenuated Total Reflectance In-Situ Cell
PX-RC-ATR-A1
PRODUCT INTRO
Compatible with mainstream FTIR spectrometers and used in conjunction with the OPRex-ATR accessory, the PX-RC-ATR-A1 spans liquid, liquid-solid and gas-solid systems. It supports ambient-to-3.0 MPa pressure and ambient-to-250 °C temperature, with built-in gas/liquid channels enabling flow or static operation for on-line monitoring of reactant composition or gas adsorption processes.
PRODUCT ADVANTAGES
- Multiphase compatibility: measurements of liquid, liquid-solid and gas-solid systems
- High-pressure capability: rated to 3.0 MPa to meet pressurized reaction requirements
- Flow measurements: built-in gas/liquid channels support in-line flow analysis
PRODUCT SPECIFICATIONS
| Parameter | Specification |
| Temperature Range | Ambient–250 °C; accuracy ±0.2 °C |
| Pressure Range | Vacuum–3.0 MPa |
| Window Material | Silicon, calcium fluoride, etc. |
| Temperature Sensing | K-type thermocouple |
| Heating Method | Heating rod, 24 V/75 W |
