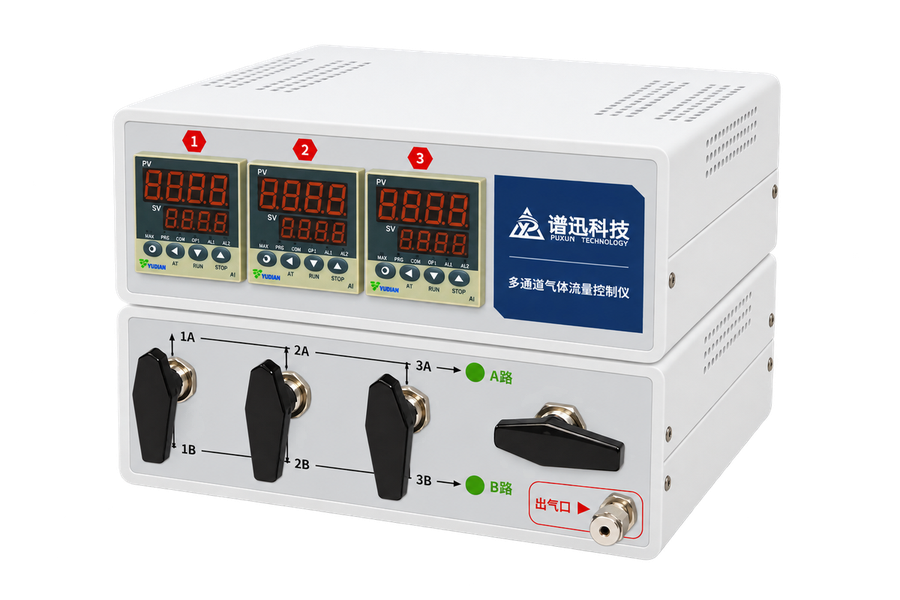

多通道气体流量控制仪
PX-FC-SC
Brooks MFC · A/B灵活分组 · 四通阀切换
产品介绍
集成多路Brooks质量流量控制器，各通道通过三通阀独立选择A/B气路，再由手动四通阀切换原位池与旁路进样。提供常压切换型、高压标准款和高压切换型，分别配置零个、一个和两个背压阀，适用于不同压力条件下的气氛控制实验。
产品优点
- 各通道独立选择A/B组，支持混合气配比与气氛切换
- 一体化紧凑设计，节约实验室空间，便于系统集成
产品参数
| 质量流量控制器 | Brooks 5850E；3台（数量可定制） |
| 阀门连接件品牌 | 熊川/析钛（其他品牌可定制） |
| 切换阀配置 | 每通道一个三通阀，配一个手动四通阀 |
| 款式与背压配置 | 常压切换型：无背压阀；高压标准款：原位池支路一个；高压切换型：原位池支路、旁路各一个 |
| 适用气体 | N2、Ar、CO2、CO、H2、空气等常规气体 |
| 流量范围 | 0~500 mL/min（可定制） |
| 流量精度 | ±1% F.S. |
| 压力范围 | 常压切换型用于常压工况；高压款按配置最高10.0MPa |
| 控制与通讯 | 数字仪表显示，提供RS485通讯接口（选配），可连接电脑进行远程控制（附带软件） |
| 产品尺寸 | L195mm×W220mm×H160mm |
Multi-channel Gas Flow Controller
PX-FC-SC
PRODUCT INTRO
Multiple Brooks mass flow controllers provide independent A/B routing through a three-way valve on each channel. A manual four-way valve switches the two gas groups between the in-situ cell and the bypass. Three configurations are available: Atmospheric Switching, High-pressure Standard and High-pressure Switching, with zero, one and two back-pressure regulators respectively, for gas-atmosphere control under different pressure conditions.
PRODUCT ADVANTAGES
- Independent A/B assignment on each channel supports gas mixing and atmosphere switching
- Integrated compact design saves lab space and simplifies system integration
PRODUCT SPECIFICATIONS
| Mass Flow Controller | Brooks 5850E; 3 units (count customizable) |
| Valve & Fittings Brand | Xiongchuan / Xitai (other brands customizable) |
| Switching Valves | One three-way valve per channel and one manual four-way valve |
| Configuration / Back-pressure Regulation | Atmospheric Switching: none; High-pressure Standard: one on the cell branch; High-pressure Switching: one on each of the cell and bypass branches |
| Applicable Gases | N2, Ar, CO2, CO, H2, air and other common gases |
| Flow Range | 0–500 mL/min (customizable) |
| Flow Accuracy | ±1% F.S. |
| Pressure Range | Atmospheric Switching: atmospheric service; high-pressure configurations: up to 10.0 MPa depending on configuration |
| Control & Communication | Digital instrument display with optional RS485 interface for remote PC control (software included) |
| Dimensions | L195 mm × W220 mm × H160 mm |
NOTE
Each additional channel: +CNY 10,000. All three configurations use per-channel three-way A/B selection and four-way switching. High-pressure Standard has one back-pressure regulator; High-pressure Switching has one on each branch.
